SAML AZURE SSO

SAML AZURE SSO

Follow the sections in this guide to set up Azure SSO using SAML.

Security requirements for your production environment:

• DELETE the admin default account shipped by OM.
• UPDATE the Private / Public keys used for the JWT Tokens in case it is enabled.

Key Notes on SAML Configuration

1. Set AUTHENTICATION_PROVIDER to saml (lowercase): Ensure the AUTHENTICATION_PROVIDER field in your environment variables is explicitly set to saml for SAML authentication to function correctly. Without this, SAML integration will not work.

2. Routing to IDP: Users will only be routed to the IDP upon sign-in if AUTHENTICATION_PROVIDER is set to saml.

Create OpenMetadata application

Step 1: Configure a new Application in Microsoft Entra ID

• Login to Azure Portal as an administrator and search for Microsoft Entra ID.

• Click on Enterprise Applications and then + New Application .

• After that a new window will appear with different applications, click on Create your own application.

• Give your application a name and select Integrate any other application you don't find in the gallery and then click Create.

• Once you have the application created, open the app from list , and then click on Single Sign-On and then SAML.

• Edit Basic SAML Configuration and populate the values as shown below for EntityId and Assertion Consumer Service Url. These value should match the one configured with Openmetadata Server side for samlConfiguration.sp.entityId and samlConfiguration.sp.acs respectively. After this click Save.

• Click on Attributes and Claims and click on the Required Claim (NameId).

• You will see the values as below image, we need to set the value Source Attribute to a user mail value claim from the IDP. Click on Edit and then select the Source Attribute as user.mail or user.userprincipalname (in some cases this is also a mail) and then click Save.

• To Confirm the claim value we can navigate to user page and check the value of the user. In my case as you can see User Princpal Name is a my mail which i want to use for Openmetadata , so for me user.userprincipalname would be correct claim.

Security requirements for your production environment:

• You must always communicate via signed Request for both request from SP to IDP and response from IDP to SP.

• To do so we need to add SP certificate to IDP , so that IDP can validate the signed Auth Request coming from SP.

• Generate the certificate using below command and then upload the certificate to IDP.

openssl req -new -x509 -days 365 -nodes -sha256 -out saml.crt -keyout saml.pem
openssl x509 -in saml.crt -out samlCER.cer -outform DER

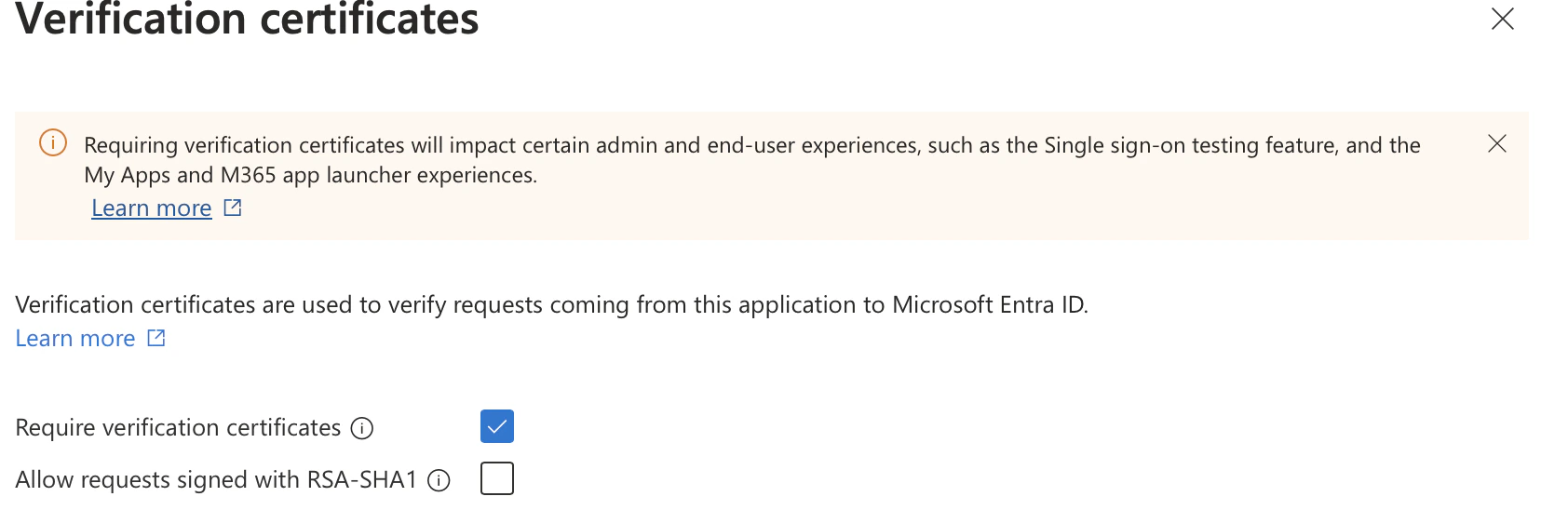

• Under Single Sign-On you will see SAML Certificates, click on Verification Certificates.

• You can then check the Require Verification Certificates and import the certification with .cer format we generated previously.

Step 2: Setup OpenMetadata Server

• Open the downloaded metadata xml file, and populate the following properties in openmetadata.yml

  authenticationConfiguration:
     provider: ${AUTHENTICATION_PROVIDER:-saml}
  samlConfiguration:
    debugMode: ${SAML_DEBUG_MODE:-false}
    idp:
      entityId: ${SAML_IDP_ENTITY_ID:-"https://mocksaml.com/api/saml/sso"}
      ssoLoginUrl: ${SAML_IDP_SSO_LOGIN_URL:-"https://saml.example.com/entityid"}
      idpX509Certificate: ${SAML_IDP_CERTIFICATE:-""} #Pass the certificate as a string
      authorityUrl: ${SAML_AUTHORITY_URL:-"http://localhost:8585/api/v1/saml/login"}
      nameId: ${SAML_IDP_NAME_ID:-"urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress"}
    sp:
      entityId: ${SAML_SP_ENTITY_ID:-"http://localhost:8585/api/v1/saml/acs"}
      acs: ${SAML_SP_ACS:-"http://localhost:8585/api/v1/saml/acs"}
      spX509Certificate: ${SAML_SP_CERTIFICATE:-""}
      callback: ${SAML_SP_CALLBACK:-"http://localhost:8585/saml/callback"}
    security:
      strictMode: ${SAML_STRICT_MODE:-false}
      tokenValidity: ${SAML_SP_TOKEN_VALIDITY:-"3600"}
      sendEncryptedNameId: ${SAML_SEND_ENCRYPTED_NAME_ID:-false}
      sendSignedAuthRequest: ${SAML_SEND_SIGNED_AUTH_REQUEST:-false}
      signSpMetadata: ${SAML_SIGNED_SP_METADATA:-false}
      wantMessagesSigned: ${SAML_WANT_MESSAGE_SIGNED:-false}
      wantAssertionsSigned: ${SAML_WANT_ASSERTION_SIGNED:-false}
      wantAssertionEncrypted: ${SAML_WANT_ASSERTION_ENCRYPTED:-false}
      wantNameIdEncrypted: ${SAML_WANT_NAME_ID_ENCRYPTED:-false}
      keyStoreFilePath: ${SAML_KEYSTORE_FILE_PATH:-""}
      keyStoreAlias: ${SAML_KEYSTORE_ALIAS:-""}
      keyStorePassword: ${SAML_KEYSTORE_PASSWORD:-""}

• Populate the above config from xml metadata

• IDP Config entityID -> Populate it from Metadata XML Entity ID HTTP-Redirect SSO Login URL -> always select HTTP-Redirect Url for SSO Login Url X509 Certificate -> This is also available in the IDP XML. NameIDFormat -> from MetadataXML NameIDFormat authorityUrl -> set as /://:/api/v1/saml/login

• SP Config entityId -> -> set as /://:/api/v1/saml/acs acs -> Assertion Consumer Url , set as /://:/api/v1/saml/acs spX509Certificate -> set to your X509 Signing Key callback -> set as /:///api/v1/saml/callback

• Security Parameters can be configured in case we want to have signed or encrypted or both assertions. In any case we decided to use above config for security then it is mandatory to provide keystore config, from where the system can load the signing certificate or Private Key for encryption.
• For production environment , it is always suggested to keep these true

      sendSignedAuthRequest: ${SAML_SEND_SIGNED_AUTH_REQUEST:-true}
      wantMessagesSigned: ${SAML_WANT_MESSAGE_SIGNED:-true}
      wantAssertionsSigned: ${SAML_WANT_ASSERTION_SIGNED:-true}

Step 3: Setup JWT Configuration

• Follow the guide here for JWT Configuration Enable JWT Token.

Security requirements for your production environment:

• UPDATE the Private / Public keys used for the JWT Tokens the ones shipped with OM are for POC only.

Step 4: Start the server

• Start the OpenMetadata server. With AUTHENTICATION_PROVIDER set to saml, you should be routed to the IDP upon sign-in.
